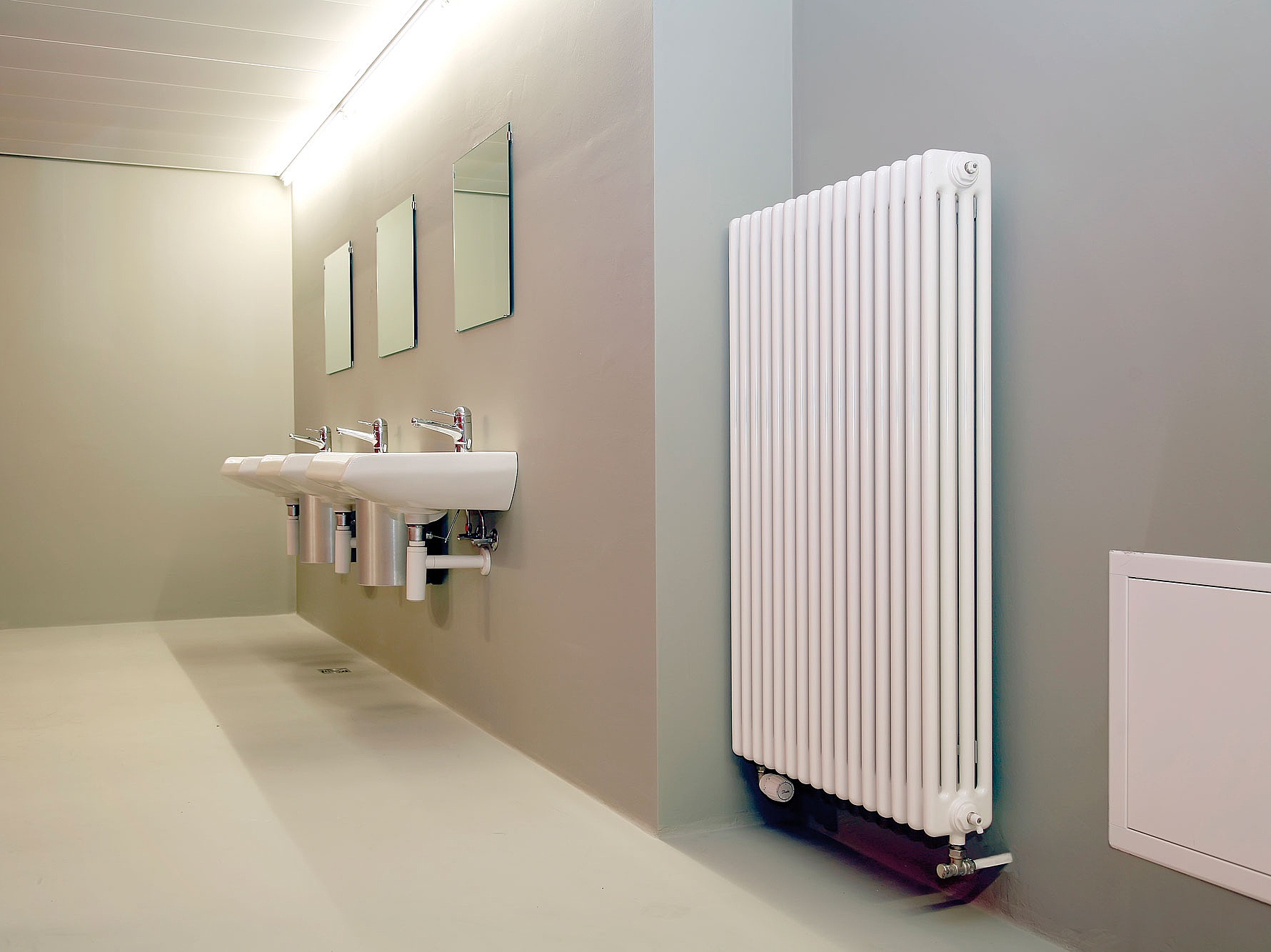

Standard column radiators
Robust and uniquely versatile.
Column radiators offer complete design freedom and maximum flexibility in planning. With a wide variety of models and dimensions, the column radiators can be adapted to suit almost any room, in both a historical and modern ambience.
Thanks to the ideal ratio of radiant heat and convection, they are not only extremely powerful, but also very comfortable.
Benefits
- First-class heat distribution
- 5 different depths
- Clear form
- High accident safety
- Easy to clean due to rounded corners and edges
- Special solutions are possible
Impressions
Standard column radiator special shape
Arbonia Individual. Maximum flexibility when planning. Column radiators Special solutions to suit almost every different room.
- Angled version

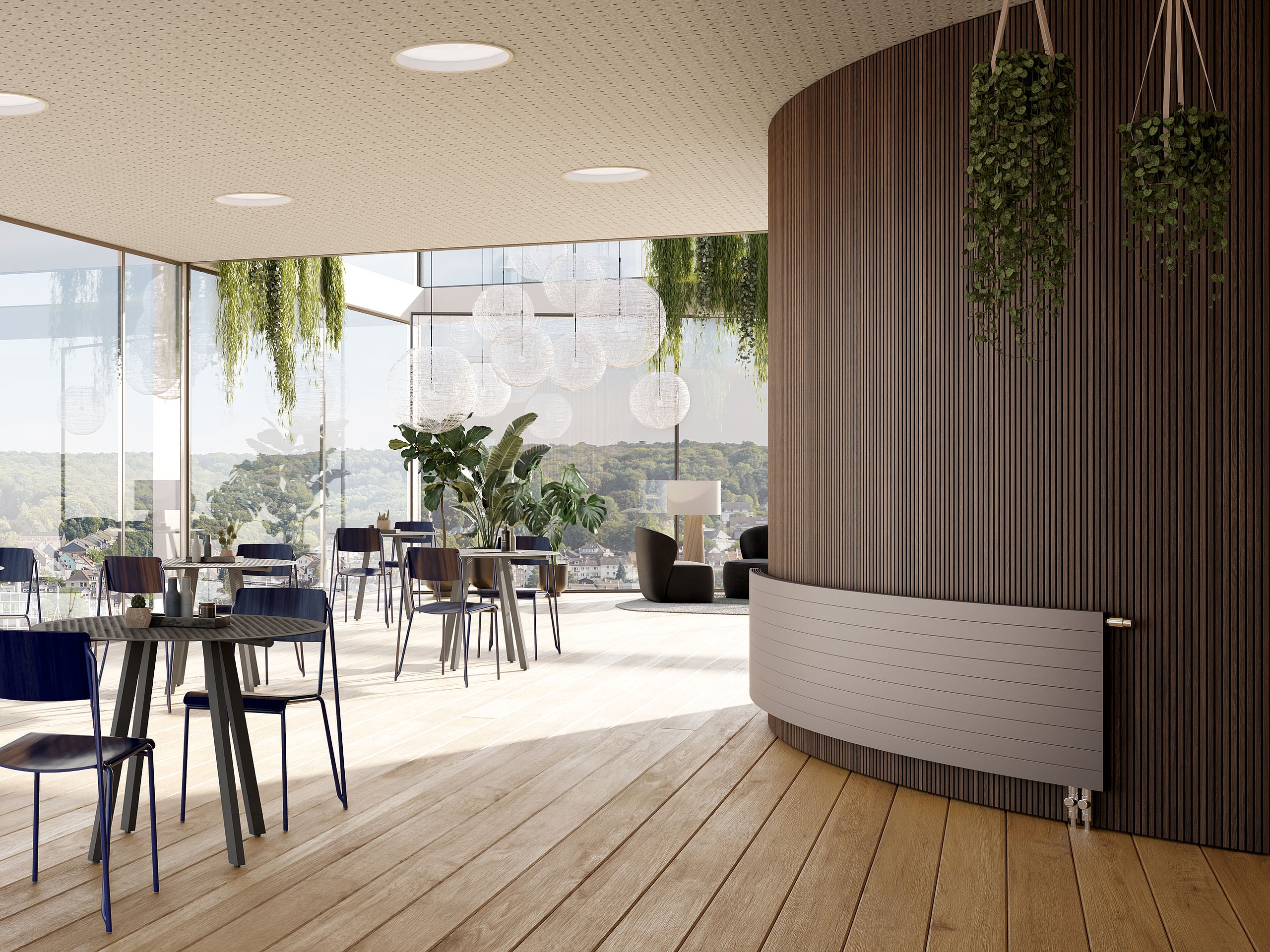

- Curved version
- Room divider installation

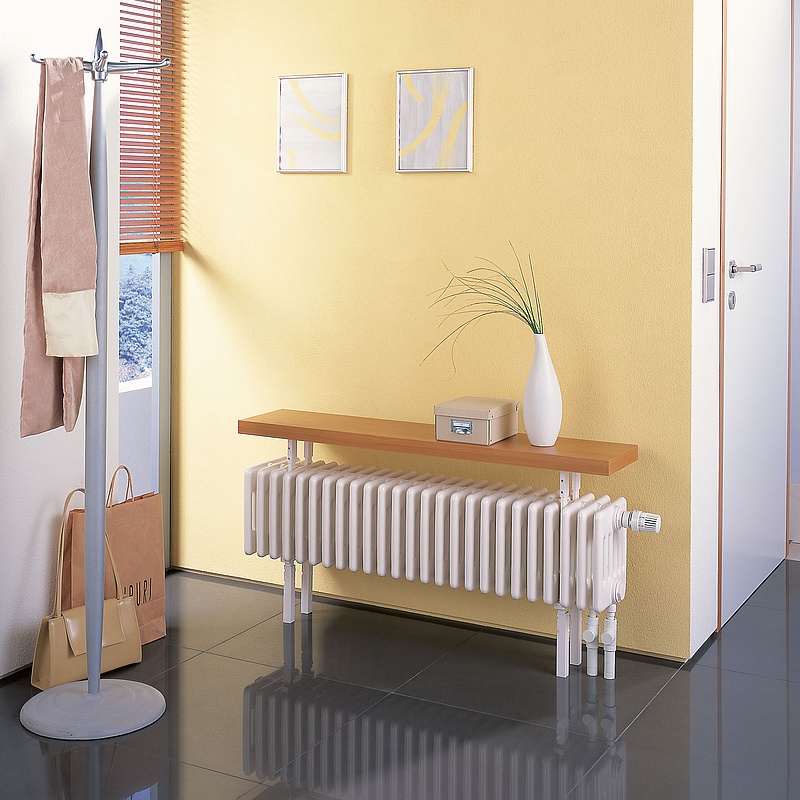

- Fixing with welded feet
- Fixing with round pipe feet
All-electric column radiators

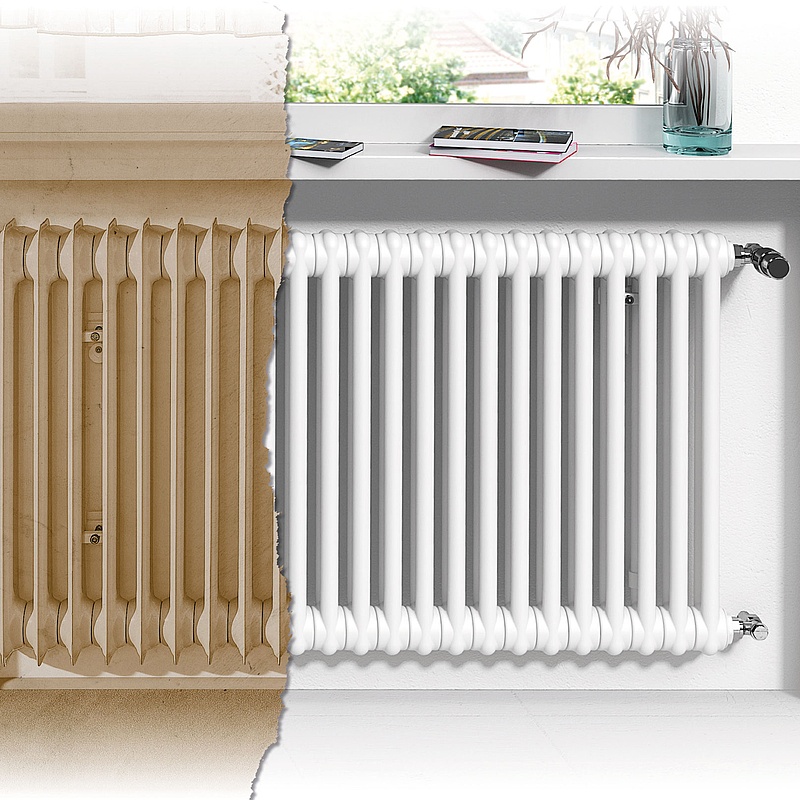

- Suitable for refurbishments in housing construction
- Additional electric heating in the transitional period
- Falling energy requirements for buildings
- Power from private solar panel systems / renewable energy sources
- Low installation costs
Other benefits
Further products
2 columns
| Number of columns | 2 |
| Depths | 65 mm |
| Heights | 190–3000 mm |
| Lengths | 270–2700 mm |
3 columns
| Number of columns | 3 |
| Depths | 105 mm |
| Heights | 190–3000 mm |
| Lengths | 270–2700 mm |
4 columns
| Number of columns | 4 |
| Depths | 145 mm |
| Heights | 190–3000 mm |
| Lengths | 270–2700 mm |
5 columns
| Number of columns | 5 |
| Depths | 185 mm |
| Heights | 190–3000 mm |
| Lengths | 270–2700 mm |
6 columns
| Number of columns | 6 |
| Depths | 225 mm |
| Heights | 190–3000 mm |
| Lengths | 270–2700 mm |
Documents
Installation video
Our packaging method simplifies handling and offers optimum protection against external influences such as dirt or damage.
Article master data
Arbonia is a partner of the international HVAC platform www.building-masterdata.com. This is operated by industry association ARGE – Building digital competence. You will find a whole host of product information from numerous brand manufacturers at www.building-masterdata.com . For Arbonia products, apart from an online shop, you will also find countless documents, images, videos, and item data in a variety of formats.
The product data is available to download in the following formats:
- CSV and Excel
- BMEcat 1.2 (XML)
- ARGE XML (DQR 9.0)
- Datanorm 4.0
Tender specification texts
Product performance specifications.
A selection of the latest tender specification texts for Arbonia radiators, trench convectors and ceiling systems is available to export in a total of nine data formats (Word, Excel, RTF, PDF, TXT, GAEB XML, GAEB 90, DATANORM 5, ÖNORM) in the storage-management programme of your choice.
Contents:
- Column radiators
- Home radiator
- Bathroom radiators
- Heating panels
- Convectors
- Trench convectors
- Ceiling systems
Tender specification texts HT according to Austrian standard ÖNorm B2063
Here you will find Arbonia tender specification texts according to Austrian standard ÖNorm 2063 – service group 46 radiators – for standardised performance specifications in Austria:
Web navigator
For 2D/3D CAD planning, the VDI 3805 web navigator online in your web browser can be used to generate the required CAD file for Arbonia radiators. The CAD data can be downloaded to CAD programmes such as AutoCAD, Revit, and Nemitschek, etc. in the following formats: DXF, DWG, IFC, STEP, and RFA. There are also attributes available for the geometries, allowing the data to be used for the BIM process.
You will find more information on BIM in Switzerland under DataExpert BIM.
